Tecpel-Propel Quality Measurements.

TECPEL-Test and Measurement

  Tecpel Product Guide

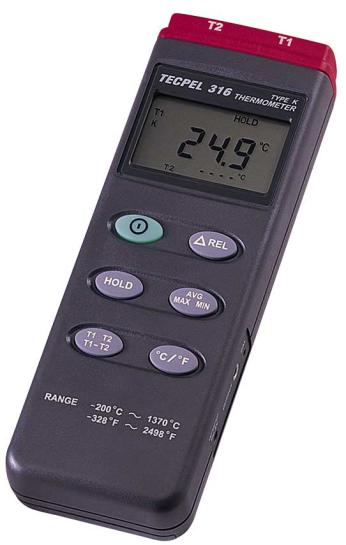

Digital Thermometer

Dual Input

Model:DTM 316

Features :

-200~ 1370 (-328 ~ 3498 )
Digital thermometer dtm-316 RS-232
 4 digit LCD display
K-type thermocouple
Function & unit sign display or annunciators
Dual thermocouple input
 Differential temperature (T1-T2)
MAX. AVG. MIN. function
 Auto power off
HOLD, REL function
Automatic low battery indication
Overrange indication
RS-232 computer Interface (Option)
Model : DTM 316


Specifications :

Measurement Range:

-200 -1370 (-328 ~ 2498)

Accuracy:

  -200 to 1370:

±(0.5%rdg+1) typical

  -328 to 2498

±(0.5%rdg+1) typical

Temperature Scale:

Celsius or Fahrenheit user-selectable

Resolution:

1 or 1 (-200~200, 0.1)

Sensor:

K­type Thermocouple

Sampling rate:

2.5 times/per second

General

Power Requirement:

1 piece 9V battery

Dimensions:

7.2"x2.5"x1.2" (184x64x30mm)

Weight:

7.4 oz(210g)

Accessories:

TPK-01x2,soft carrying case and owners manual.

Detail ...

Download Software : Download softwre of dtm-316
