Multi Function processs Calibrators



Product ID: CL 327A



The  NEW  Tecpel® CL-327A  is a battery-powered, hand-held process calibrator that allows process technicians to simulate and source  variables signals. Output signals including DC voltage, DC current, ohms, analog transmitters, thermocouple, RTD, frequency, pulse, Switch On-OFF,  are widely used in measurement and calibration for industrial field and laboratory application, it is one of necessary tools used to test and calibrate industrial automation systems and instruments. Get your job done fast and get it done precisely at affordable price. Your right choice!





Process calibrator

Product ID: CL 325

Multifunction Calibrator



Model: CL 325 Features
1. 4-20mA (1K Ohm load, 24V Loop Supply)
2. 0-100.00mV,0-1.000V, 0-12.000V
3. K, J, E, T Thermocouple (°C and °F)
4. Frequency 1-62500 Hz
5. 0.025% Basic Accuracy
6. Easy Key-pad Operation
7. Easy Step and Auto Ramp Functions
8. 0-20mA, 0-24mA selectable
9. 0-100% Input (mA, mV, V )
10. Beeper warning when output is open (mA) or short (mV,V)

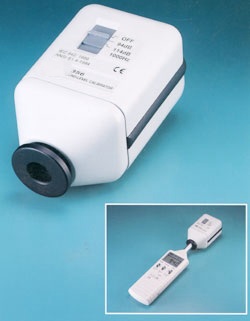

Sound Level meter calibrator

Model:　DSL-336A

Sound Level Calibrator
Model：DSL 336A is replaced
Features :
1. 94dB and 114dB Sound Calibration at 1KHz
2. Acurate and Simple to use
3. Fits 1 inch, 1/2 inch or 1/4 inch diameter microphone





Source and simulate virtually all electronic process signals.

Model: CL-420A

Loop Calibrator simultaneous mA and % readout.

Fast and easy to interpret reading mA accuracy of 0.05%

Push button 25% steps for easy and fast linearity check 24V internal loop supply.





Temperature calibrator

CL-327 Replaced by CL-327A

1. 11 types of thermocouples
2 .K,J,E,T,R,S,N,L,U,B and C
3. C and F with 0.1 deg C and 0.1 deg F resolution
4. Internal and external temperature reference
5. Delta T input, Delta T increment, and delta T decrement
6. Easy Just-type-in-number operation
