Electronic/Electric Instruments



Thermocuples,

thermometer sensor,

temperature probes

Thermocouples Probes

(Click to download DM)

Bead Probe Thermocouple TPK-01

Bead probe thermocouple temperature sensor

  -50°C ~ 200°C/-58°F ~392°F, for measuring of air , liquid
     temperatures. 4ft. wire with an industry standard miniature
    connector plug.



Bead Probe Glass Fiber Thermocouple TPK-01G

Glass fiber thermocouple Temperature sensor  high temperature probe

  -50 °C~ 500°C/-58°F ~932°F, for measuring of air
     temperatures. 4ft. wire with an industry standard miniature
    connector plug.



Bead Probe TPK-01-40G

Bead probe thermocouple thin temperature sensor

  -50°C ~ 180°C/-58°F ~356°F,  wire diameter 40 gauge  for measuring of air temperatures. 4ft. wire with an industry standard miniature   connector plug.
  Best suitable for measuring SMD component temperature and tiny components.
  As tiny as a hair thikness

Bead Probe TPT-01-40G   ( T Type)

T type bead probe thermocouple temperature sensor

  -50°C ~ 180°C/-58°F ~356°F,  wire diameter 40 gauge  for measuring of air temperatures. 4ft. wire with an industry standard miniature   connector plug.
  Best suitable for measuring SMD component temperature and tiny components.
  Suitable for T type thermometer

  As tiny as a hair thikness



Bead Probe TPT-01  ( T Type)

T type Bead probe thermocouple temperature sensor

  -200 °C~ +200°C/-328 °F ~392°F,    for measuring of air temperatures. 4ft. wire with an industry standard miniature   connector plug.
  Suitable for T type thermometer

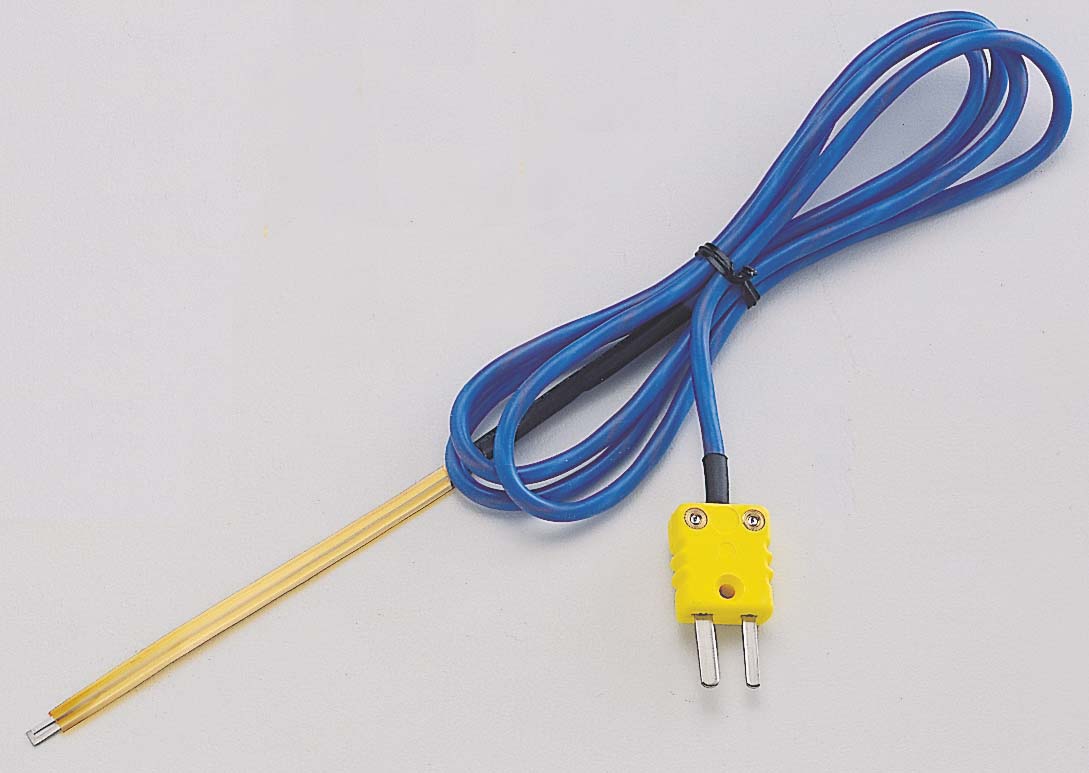

 Flat Leaf Surface Probe

Surface probe thermocouple temperature sensor

  -50°C ~ 300°C/-58°F ~572°F,    for measuring of surface  temperatures.
  Suitable for measuring semiconductor chips , Flat panel
    Model:  TPK-02A  0.1 mm thickness (measuring point) , 2.0 mm width,   L: 84mm (Flat leaf) + 930 mm (Straight Cable)

  Model:  TPK-02B  0.1 mm thickness (measuring point) , 5.0 mm width,   L: 84mm (Flat leaf) + 930 mm (Straight Cable)



Immersion Probe TPK-03

Immersion probe thermocouple temperature sensor
  -50°C ~ 800°C/-58°F ~1472°F General purpose needle
     type with stainless point head.
  For measuring internal temperatures of liquids, semi-solids
     such as oils, rubbers, plastics, power, clays, meats, fruits,
     frozen foodstuffs.



Immersion Probe TPK-03S

short type immersion probe thermocouple  temperature sensor
  -50°C ~ 800°C/-58°F ~1472°F General purpose needle
     type with stainless point head.
  For measuring internal temperatures of liquids, semi-solids
     such as oils, rubbers, plastics, power, clays, meats, fruits,
     frozen foodstuffs.



Immersion Probe TPK-03SM

Mould K type  connector immersion probe thermocouple temperature sensor
  -50°C ~ 800°C/-58°F ~1472°F General purpose needle
     type with stainless point head.
  For measuring internal temperatures of liquids, semi-solids
     such as oils, rubbers, plastics, power, clays, meats, fruits,
     frozen foodstuffs.
With an industry standard miniature K type connector plug molded with cable.

Material: Stainless 3.20mm/Diameter 100mm long Sheath pipe with round head at front.
measuable temperature: up to 800 ¢XC (10 Sec)

Accessories: Plastic bag.

Immersion Probe TPK-03XP

Omega K type plug immersion probe thermocouple temperature sensor

  -50°C ~ 800°C/-58°F ~1,472 °F, for measuring temperature of liquids, semi-solid such as oils, rubbers, plastics, powder, clays, meats, furits, forzen foostuffs.

With an industry standard miniature K type Omega connector plug.

Material: Stainless Sheath pipe with sharp needle head.

measuable temperature: up to 800 J (10 Sec)




Surface Probe head for all TPK-04XX
Flat surface thermocouple temperature sensor
  -50°C ~ 500 °C/-58°F ~932°F
  Fast response probe
  One Stripe type High quality sensor for long durability

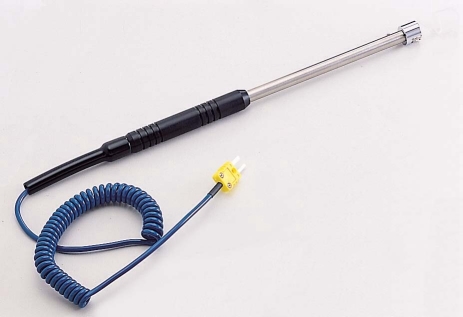

Surface Probe TPK-04
Flat Surface probe thermocouple  temperature sensor
  -50°C ~ 500 °C/-58°F ~932°F
  Fast response probe
  Ideal for measuring the surface temperature of small
     electronic parts


See more...

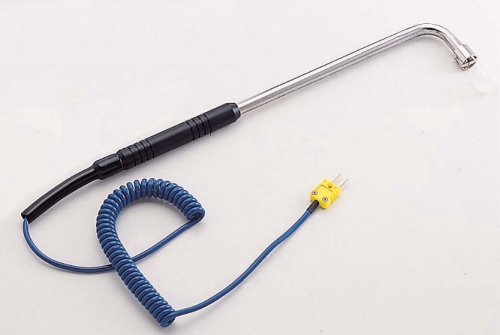

Surface Probe TPK-04L
Surface probe thermocouple temperature sensor
-50°C ~ 500°C/-58°F ~932°F
Fast response probe
   Ideal for measuring the surface temperature of small
     electronic parts

See more...



Surface Probe TPK-04LS  S
Surface probe thermocouple temperature senosr
-50°C ~ 500°C/-58°F ~932°F
Fast response probe
   Ideal for measuring the surface temperature of small
     electronic parts
  • 90 degree Short Angle Surface Probe
  • Diameter: 14 mm
  • Length : 185 mm (Stainless steel)
  • Hand Holder: 120 mm
  • Coiled Cable: 1500 mm
  • Short Angle Arm length: 25mm

See more...





Surface Probe TPK-04S
surface probe thermocouple temperature sensor
  -50°C ~ 500°C/-58°F ~932°F
Fast response probe.
  Ideal for measuring the surface temperature of small
     electronic parts


See more...



Air Probe TPK-05
Air temperature probe thermocouple temperature sensor
  -50°C ~ 600°C/-58°F ~1120°F
  Fast response probe.
  Ideal for measuring air, gases, freezers, ovens, fans and its
     drilled sheath protects element and assures airflow



Roller Probe TPK-06
Roller Probe thermocouple surface temperature measurement temperature sensor
-50°C ~ 250°C/-58°F ~482°F
  Fast response probe.
  Ideal for measuring moving rotating, stationary surface or moving
    conveyors for molds, textiles, prints, PC boards, papers, textiles
See more...



Magnetized thermocouple TPK-07
Magnetized thermocouple TPK-07  temperature sensor
-50°C ~ 250°C/-58°F ~482°F
   Fast response probe.
  Ideal for measuring magnetic surface such as motors, transformers
     dryers, blast furnaces, heating elements



Magnetized thermocouple TPK-07J

Magnetized surface probe thermocouple temperature sensor

  -50°C ~ 250°C/-58°F ~482°F
  Fast response High Accuracy Temperature Japan Sensor Matrial

Ideal for measuring magnetic surface such as motors, transformers, dryers, blast furnaces, heating elements



See more...





Thermocuple Extension Cable TPK-01FM-10M

Thermocouple extension cable thermocouple temperature sensor extension.

  K Type Thermocouple Extension Calbe Length : 10 Meter long
with female and male connecto to meet any K type thermocouple extension.




PT100 Ohm 3 wires Temperature Probe PT100-01

PT100 Ohm 3 wires temperature probe  pt 100 ohm 3 wires temperature sensor

  Model: PT100-0199999999997

PT 100 Ohm 3 wires Temperature range : -50 ~ 700 °C.
Accuracy : Class A
+/- (0.15 + 0.002 x Temperature) deg C.
Diameter 3.2 mm
Length 200 mm
Product Tube 3.16 mm





How to use the surface temperature TPK-04, 04S, 04L thermocouple correctly?

The Objective surface should be kept clean, as a result of oil, dust, or other insulating material. For example,  paint will affect the measurement accuracy .

  1. Measured surface should be flat, For example,  the measured object is rough or uneven, you need to use grease ,smear on its surface to get better heat transmitting. Rough surface tends to cause the thermocouple sensor damaged or poor performance of  the accuracy .
  2. Measurement of surface area must be greater than the size of a probe sensor.
  3. Prohibit using surface thermocouple for rolling objects. Suggest to use scroll wheel temperature measurements Tecpel TPK-06 Rolling thermocouple to measuring rolling objectives.
  4. Take the vertical angle of 90 ° degrees.  The error should not exceed 5 ° degree angle to ensure the accuracy of temperature measurement
  5. Do not measure the temperature exceeds its rated temperature, to avoid the thermocouple from being damaged.
