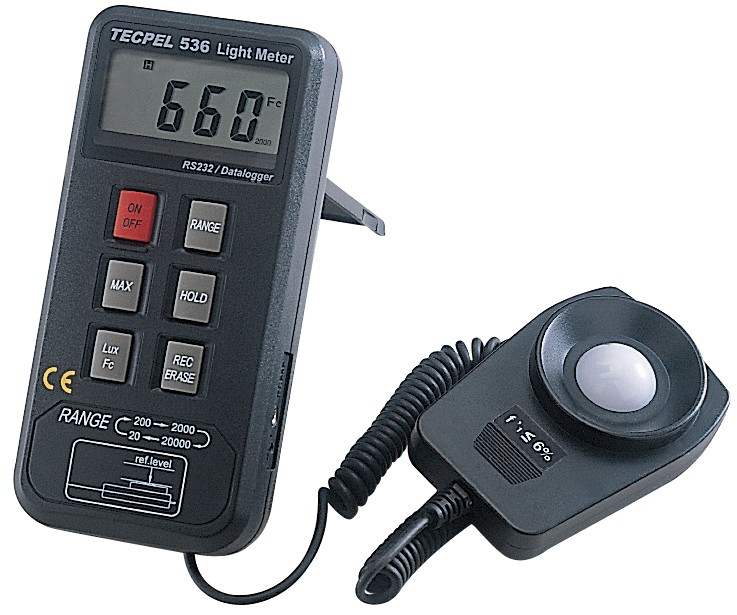

TECPEL_Datalogging_Light Meter_(RS-232)_DLM 536

Datalogging Light Meter (RS-232)

MODEL : DLM 536
Spectrum of photo sensor meets C.I.E.
photopic curve V(l)
16000 Records Data logging capacity
RS-232 interface (software included)
Measurement of luminous intensity

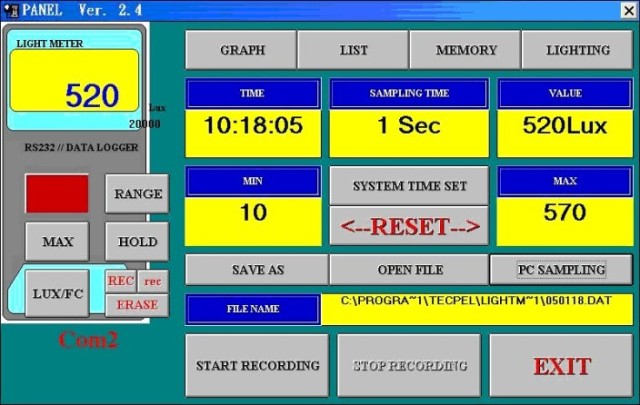

(PC Software)

DLM 536 Specifications

Measuring range :
20/200/2000/20000 Lux , 20/200/2000/20000 Fc

Luminous intensity (cd) :
Intensity = illuminance x (length)²

Length：

feet (Fc)
meter (Lux)

Resolution : 0.01 Lux

Accuracy : +/-( 3% rdg + 5dgts )
(calibrated to standard incandescentlamp, 2856 K)

Overrang display : OL

Record (Data logging) : 16000 Point Data logger

Sensor : Silicon photo diode

Sensor lead length : 150cm (approx)

Sensor probe : 100(L) x 60(W) x 27(H) mm

Main instrument Dimensions and weight :
   146(L) x 70(W) x 39(H) mm/300g (approx)

Power source : One 9V battery

Battery life : 50hrs (approx)

Operating Storage Condition :
   0^oC ~ 40^oC ( 32^oF~104^oF ) below 80% RH
   -10^oC ~ 60^oC ( 14^oF~140^oF ) below 70% RH

Accessories :
Carrying case、9V battery、instruction manual、
Software、USB cable、 9 Pin to 25 Pin gender changer, screwdriver.
