Model : DTM 321
| ☆ Temp:-20℃ ~ 60℃ (-4℉ ~ 140℉ ) |
|
|
| ☆ K-type: -200℃ ~ 1370℃ (-328℉ ~ 2498℉) | ||
| ☆ Humidity:0 ~ 100%RH | ||
| ☆ 4 Digit, Triple display | ||
| ☆ K-type Termocouple | ||
| ☆ Reading hold ℃ or ℉ annunciators | ||
| ☆ MAX. MIN. function | ||
| ☆ Auto power off | ||
| ☆ △REL function | ||
| ☆ Automatic low battery indication | ||
| ☆ RS-232 computer interface | ||
| ☆ RS-232 cable and software for Windows (Options) | ||

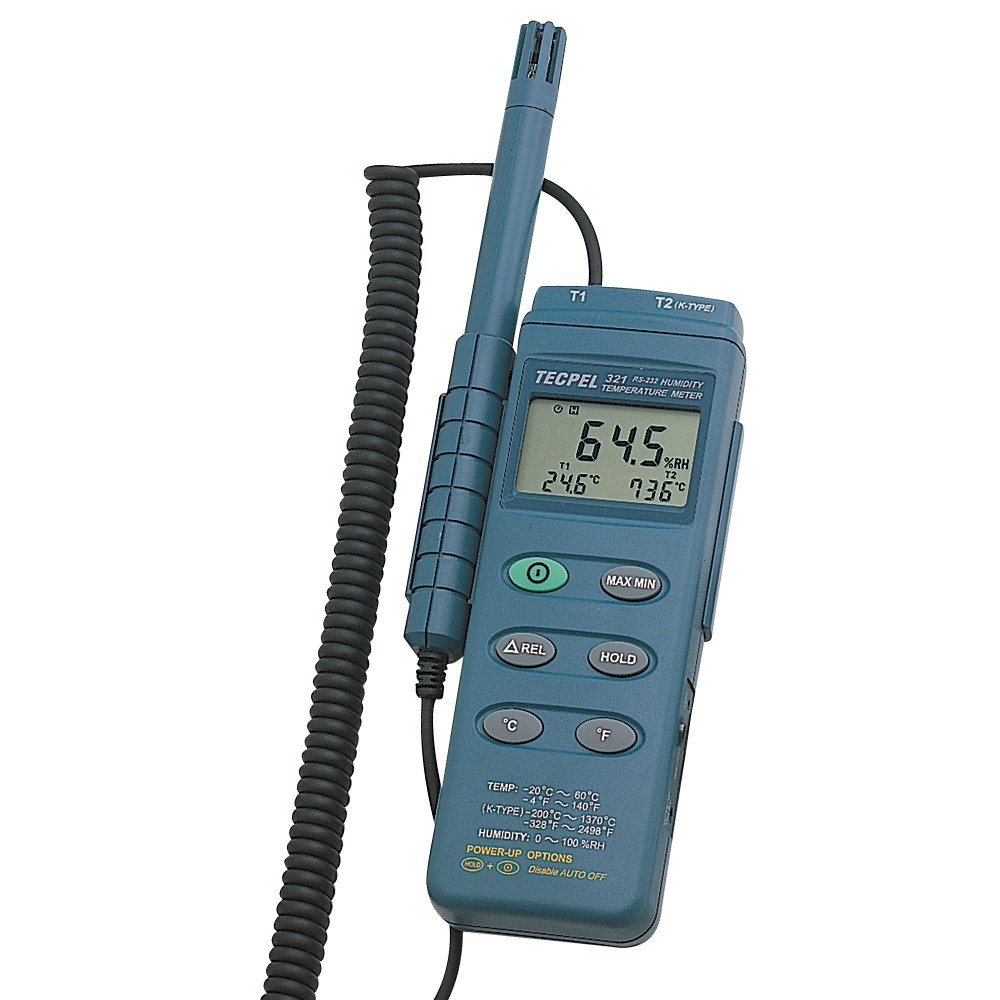

| Model : DTM 321 | ||
| Click here for larger image |
Specifications :
|
Measurement
Range: |
T1:-20℃
~ 60℃
(-4℉ ~ 140℉) |
|
T2:K-type:-200℃
~ 1370℃ (-328℉
~ 2498℉) |
|
|
Humidity: |
0~100%RH, Accuracy ±2.5%RH |
|
Accuracy: |
|
|
-20℃
~ +60℃: |
T1:±0.7℃ |
|
-4℉
~ 140℉ |
T1:±1.4℉ |
|
-200℃
~ 1370℃: |
T2:±(0.3%rdg+1℃)
typical |
|
-328℉
~ 2498℉ |
T2:±(0.3%rdg+2℉)
typical |
|
Temperature
Scale: |
Celsius or Fahrenheit
user-selectable |
|
Resolution: |
Humidity:0.1%RH;Temp.T1:0.1℃,0.1℉ T2:-200℃~200℃,0.1℃; 200℃
~ 1370℃,1℃. |
|
Sensor: |
K-type Thermocouple |
|
Response
Time (T1): |
Humidity:75 sec. in slowly moving
air |
|
Temperature: |
40 sec. in slowly moving air |
|
Input
Protection: |
60V DC or 24V rms AC Maximum |
| General |
|
|
Power
Requirement: |
1 piece 9V battery |
|
Dimensions: |
Meter:10.8"x2.5"x1.2"
(186x64x30mm) Probe:7.5"x0.6"
(190x15mm) Weight:11.2 oz(320g) |
|
Accessories: |
1 x TPK-01,probe, 9V battery,
Deluxe carrying case, owners
manual. |
|
||||||||||
