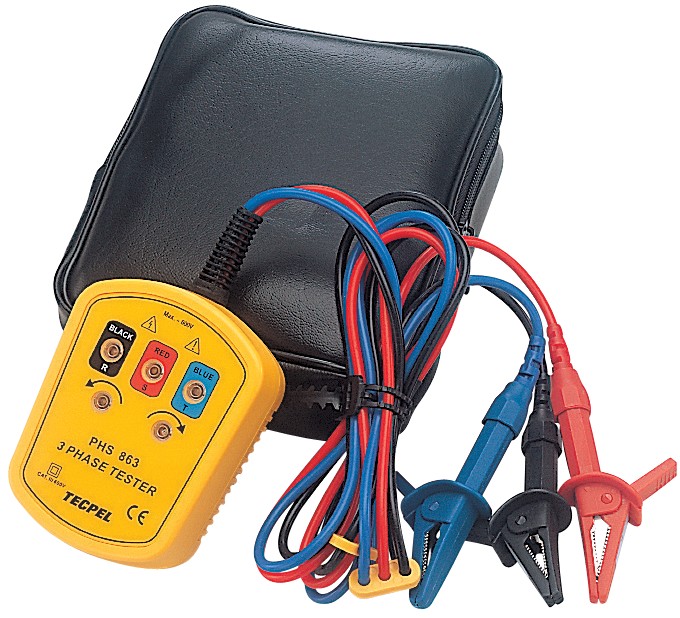

Phase Sequence Indicator
Model: PHS-863
Model: PHS-863!@
|
Model : PHS 863 |
| Features: |
 Two Functions in one
unit including open phase and phase sequence |
|
Large Size alligator
clips can easily clip on switch-board terminal. |
|
Highly Reliable :
Identifies 3 phase sequence and open phase check. |
|
Functional design : This
model is ideal for installing conveyor lines, pump systems and
interconnected drivers. |
|
Safety approval : CE
marks EN 6101-1 CAT. III. EN 61010-2-031 |
|
Circuit Structure : All
Electronic ( Not mechanical) |
| PHS 863 PHASE SEQUENCE INDICATOR | ||
| SPECIFICATIONS CE Approval | ||
|
Test Condition |
Input Voltage | AC 110 ~ 600 V |
| Frequency | 45 - 70Hz | |
| AC Power Consumption | Approx. 7mA per phase rotation files indicator | |
|
|
||
|
General Specification :
|
Circuit Structure | All electornic ( Not mechanical) |
| Dimensions: | 102(L) x 78(W) x 32.5(D)mm | |
| Weight | 228 g | |
| Accessories | Vinyl Case , Instruction Manual | |
|
||||||||||
