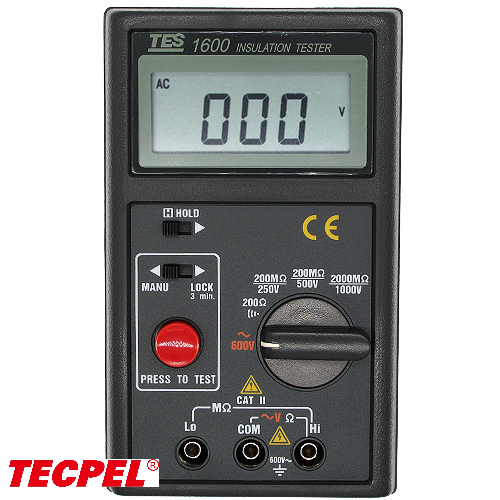

TES-1600 Insulation Resistance Tester

Product Introduction

Measurement Specification

• 250V Test Voltage : 200M Ω ±(3%+5 digits), Test Voltage 250V±10%, Test current mA at 250K Ω load
• 500V Test Voltage : 200M Ω ±(3%+5 digits), test voltage 500V±10% ,test current 1mA at 500K Ω load
• 1,000V Test Voltage : 2,000M Ω ±(3%+5), test voltage 1000V±10%, test current 1mA at 1MΩ load
• AC Voltage : 600 V ±(0.8%+3)
• resistance range, resolution, accuracy, max. open circuit voltage, overload protection : 200Ω , 0.1Ω , ±(1% reading +2 digits) , 3.3V , 500Vrms
• Continuity test () Resolution, Operating range , Maximum open circuit end voltage, Overload protection : 200Ω, 0.1Ω , Approximately <100Ω , 3.3V , 500Vrms

Product Features

• Reading displays : LCD display character height 16.5mm, maximum reading 1999
• Sampling Rate : 2.5 times/second
• Zero adjustment : Auto Zero Adjustment

Product Information

• Working Environment : 0~40°C / lower than 70%RH without dew。
• Storage Environment : -10~60 °C / lower than 80%RH without dew。
• Elevation Limitation : Lower than 1,000 meters
• Power Supply : 1.5V Battery (AA) x 6
• Dimension : 205 x 90 x 55 mm
• Weight : 500g (Battery including)
• Accessory : Battery, Carrying bag, Test stick, Manual
