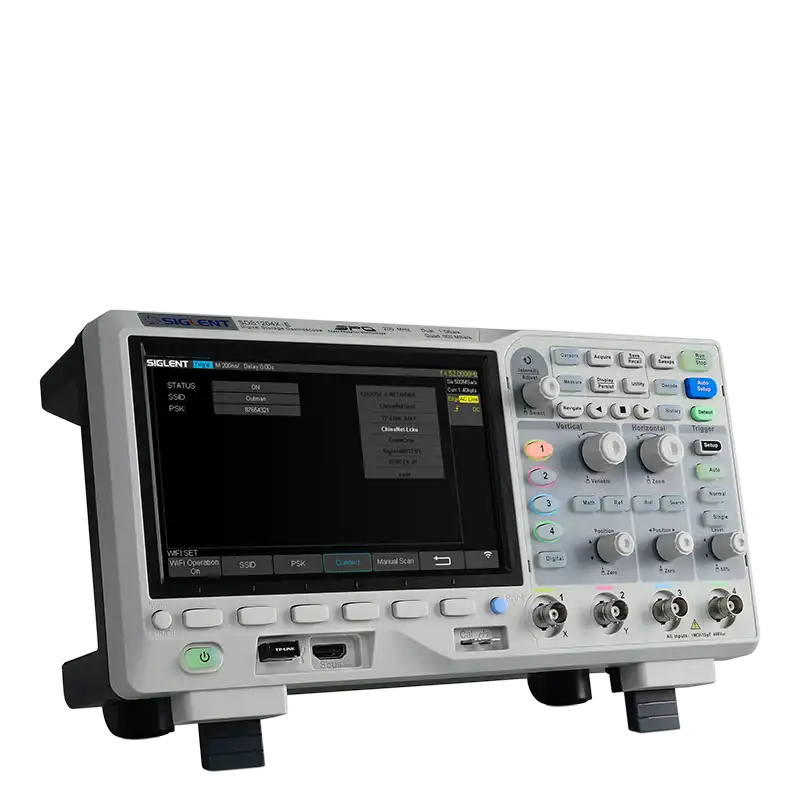

Siglent SDS-1104X-E 100MHz four channel oscilloscope

Product Introduction

Measurement Specification

• Oscilloscope specifications: : 100MHz
• Bandwidth : 1GS/s
• Channel : 4
• Capture rate : 100,000 wfm/s
• Capture rate(Sequence mode) : 400,000 wfm/s
• Screen Resolution : 14 Mpts/ch
• Horizontal Resolution : 1ns/div ~ 1000s/div
• Vertical Resolution : 500µV/div ~ 10V/div
• Signal Resolution : 8 Bit
• DC gain accuracy : ≤ 3.0%
• Rise time : 3.5 ns
• Offset accuracy : ±(1.5% * offset + 1.5% * full scale + 1 mV)
• Offset range : 500 μV/div ~ 100 mV/div: ± 2V
• Impedance : (1 MΩ ±2%) || (17 pF ±2 pF)

Product Features

• Language : Simplified Chinese / English
• Navigator :
• Interface : USB 2.0 Host x2, USB 2.0 Device, LAN, External trigger, Auxiliary output (TRIG OUT，PASS/FAIL)
• Mask Editor :
• Bode Plot :
• Power analysis :
• Counter :

Product Information

• Real-time Sampling Rate : 800 x 480 / 7” TFT-LCD
• Working Environment : 0~40°C / lower than 85%RH without dew.
• Storage Environment : -20~60°C / 85% RH, 65°C at lower than4 hours.
• Altitute : ≤ 3,000 m
• Elevation Limitation : AC 100 - 240 Vrms / 50-60Hz
• Dimension : 312 × 150 × 134 mm
• Weight : 2,800g
• Accessory : 100MHz probes x 2, Guarantee Card, Power Cord, USB Cable, Quick Start Guide
