DR99 Series Panel Meters Multi-functional Measurement Instruments

Panel Meters Series

The DR99 panel meters are designed for industrial process control and monitoring, with precise voltage, current, and temperature measurement capabilities.

 DR-99 Series Panel Meters – Versatile & Reliable Measurement Solutions

✅ Universal Input Options for Industrial Needs

Choose from models tailored for:

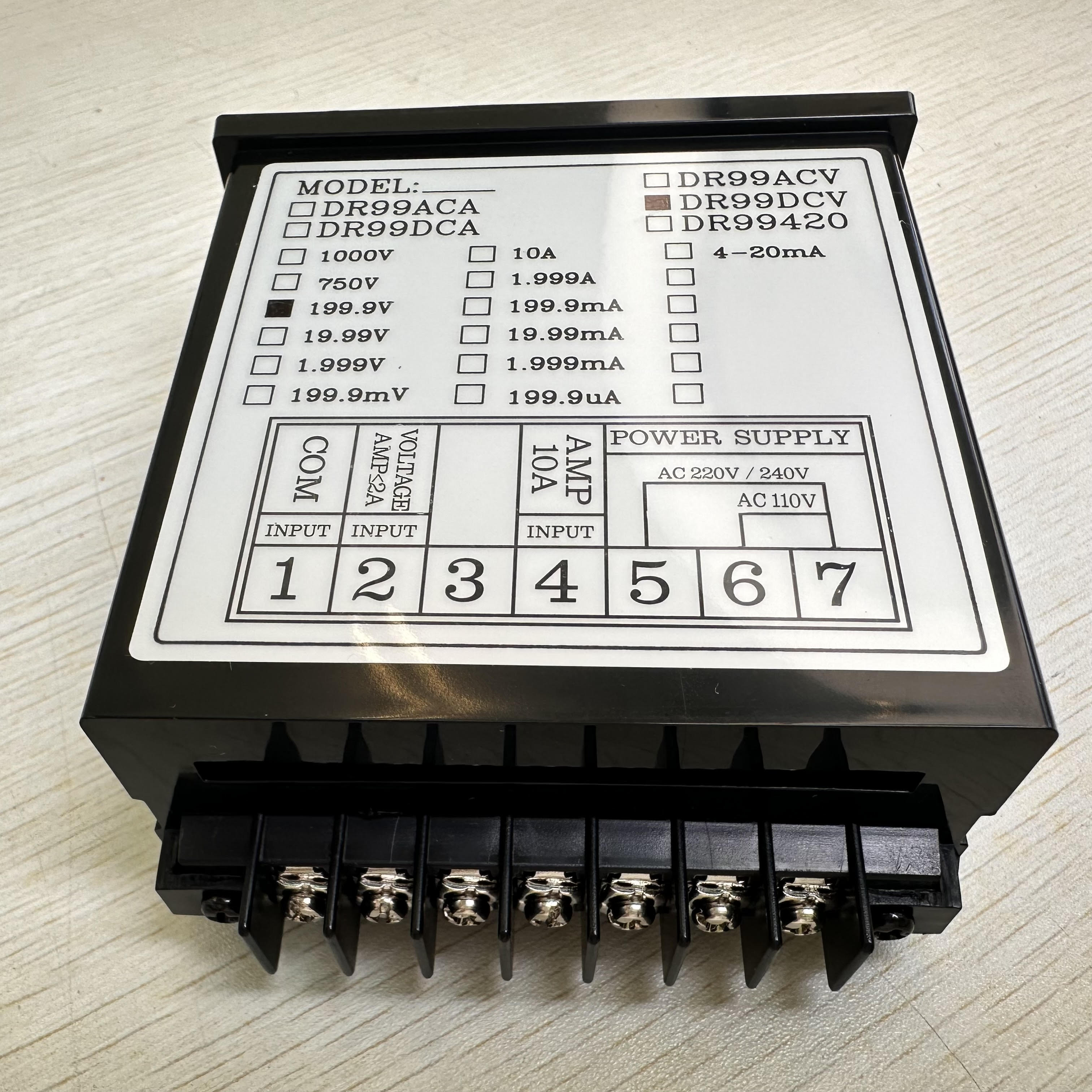

DC Voltage (DCV) – Model: DR-99DCV

DC Current (DCA) – Model: DR-99DCA

AC Voltage (ACV) – Model: DR-99ACV

AC Current (ACA) – Model: DR-99ACA

Current Loop (4–20 mA) – Model: DR-99420

Temperature Measurement – Model: DR-99TEMP

Key Features (All Models):

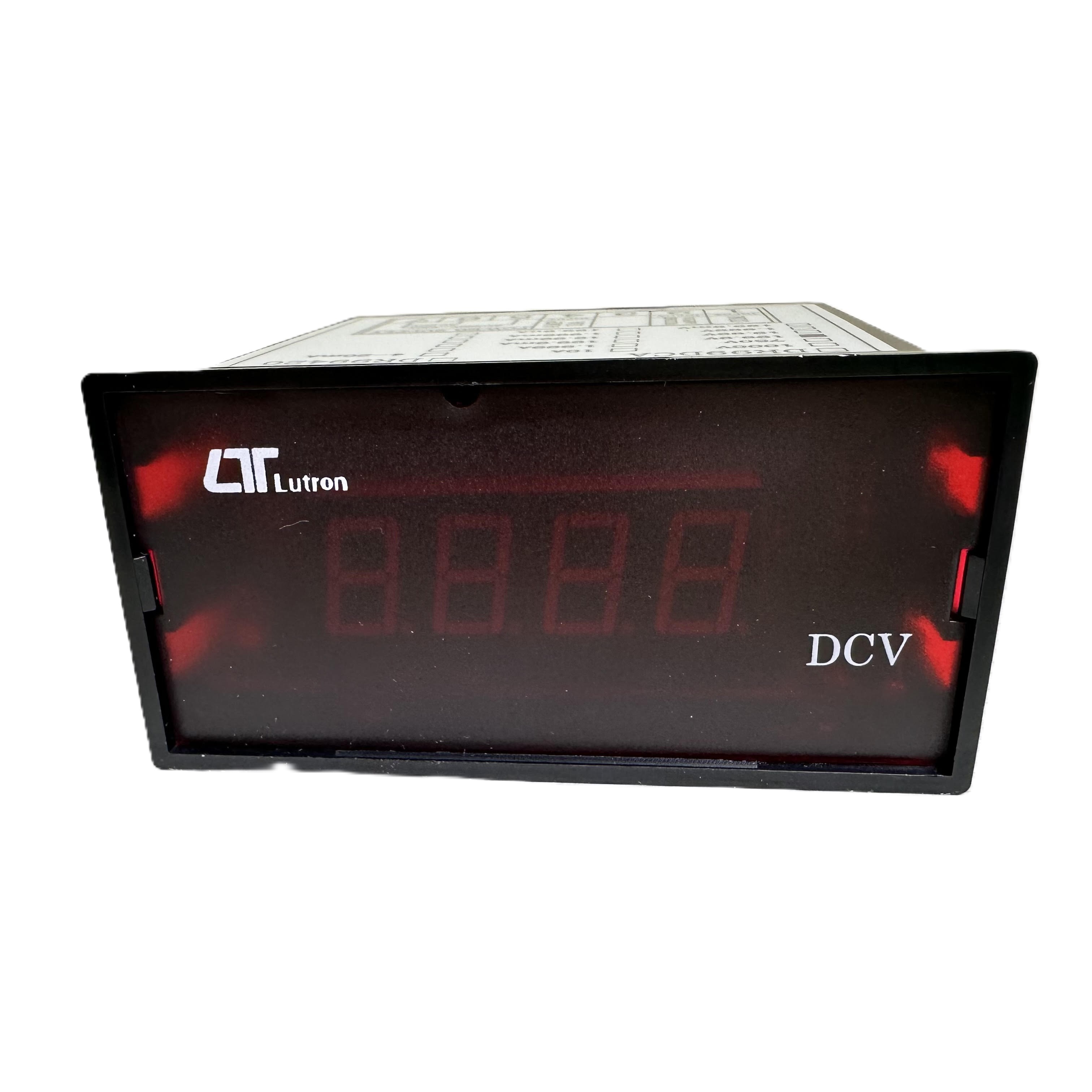

Clear Display: Bright 14 mm red LED, easy to read in all conditions.

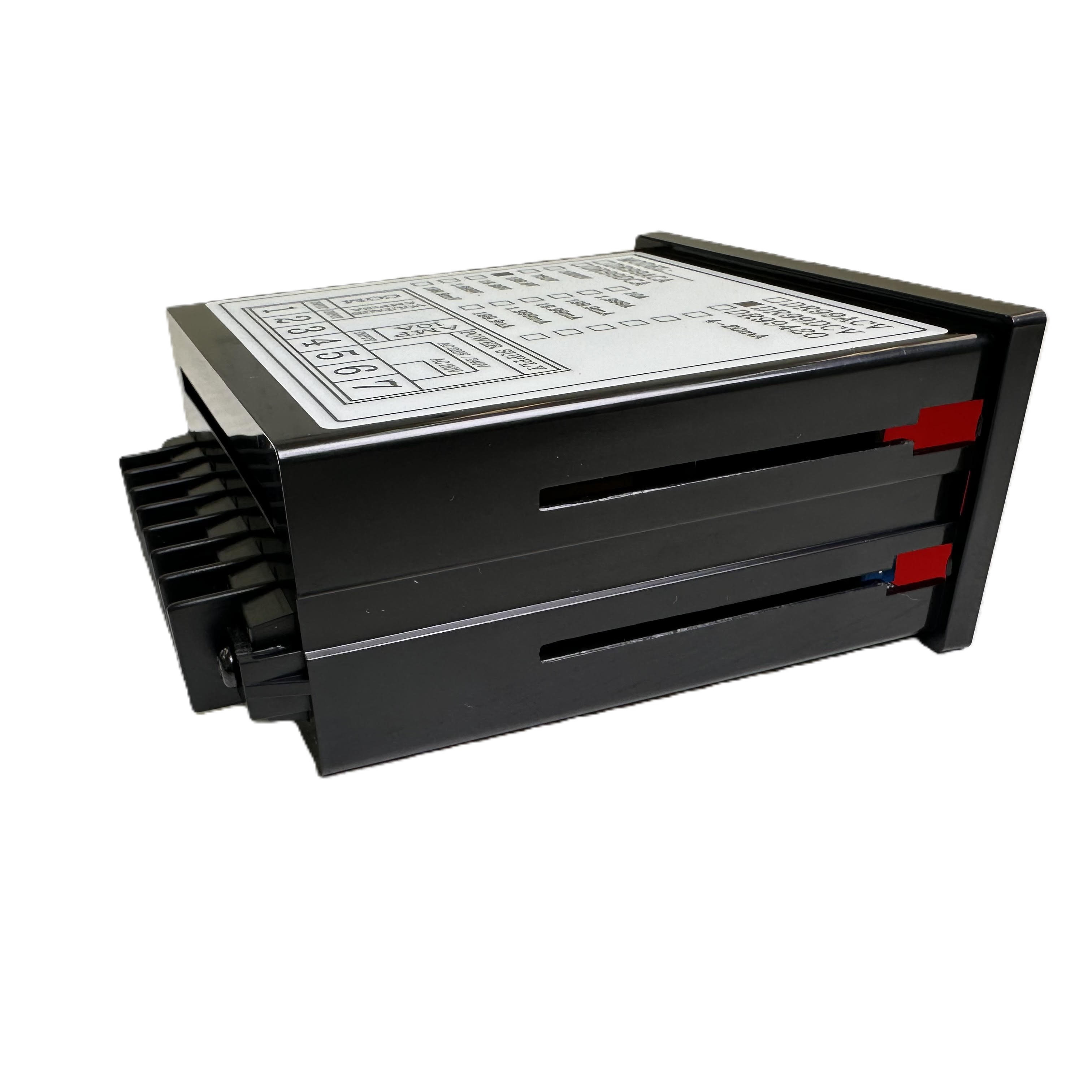

Standard DIN Size: 96 x 48 mm front panel, 104 mm depth – ideal for control cabinets.

Power Compatibility: Operates on 110V / 220V / 230V AC.

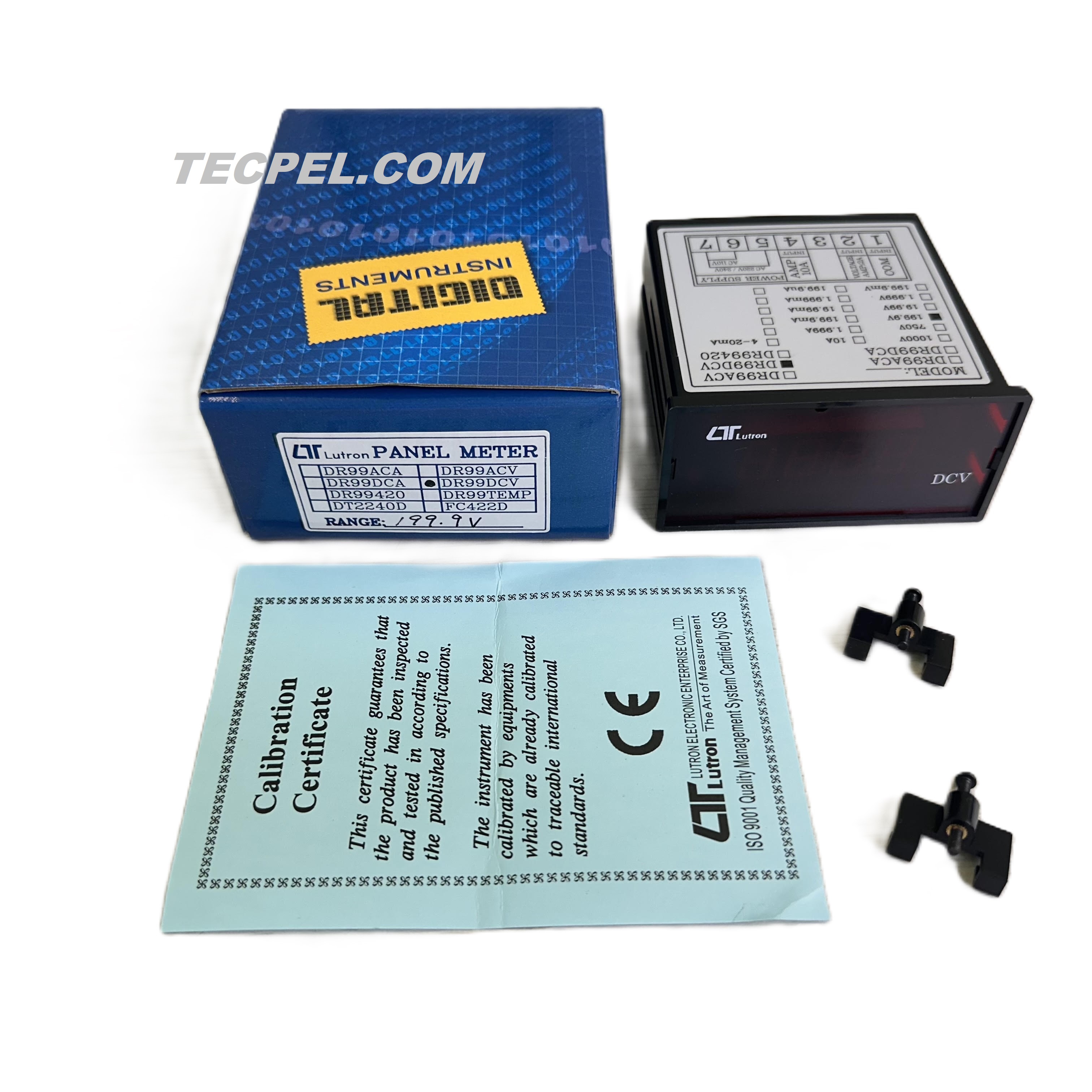

Certified Quality: ISO-9001 certified, CE marked, and IEC1010 compliant.

More information....

Product Introduction

The DR99 panel meter series covers a wide range of measurements, ideal for power monitoring and temperature management systems. It features a 14 mm red LED display for clear readings and supports various power supply voltages, making it easy to install. 📐 Detailed Model Specifications: 🔋 DC Voltage Panel Meter – DR-99DCV Measurement range: 199.9 mV to 600 V DC (5 selectable ranges) Jumper-selectable ranges for easy configuration. ⚡ DC Current Panel Meter – DR-99DCA Measures from 199.9 mA to 10 A DC (6 selectable ranges) Jumper-configurable for flexible application use. ⚡ AC Voltage Panel Meter – DR-99ACV Voltage range: 199.9 mV to 600 V AC (5 ranges) Jumper-selectable to suit varied voltage levels. 🔌 AC Current Panel Meter – DR-99ACA Current range: 199.9 mA to 10 A AC (6 selectable ranges) Designed for precise alternating current monitoring. 🔄 4–20 mA Loop Panel Meter – DR-99420 Compatible with most standard transducers and transmitters Built-in Zero VR and Gain VR adjustments for calibration. 🌡️ Temperature Panel Meter – DR-99TEMP Temperature range: -50°C to 1300°C Supports ℃/℉ selection and resolution adjustment (1° or 0.1°) Jumper-based configuration for unit and precision control. 📦 Perfect For: Process control Industrial automation Power systems Panel integration projects
