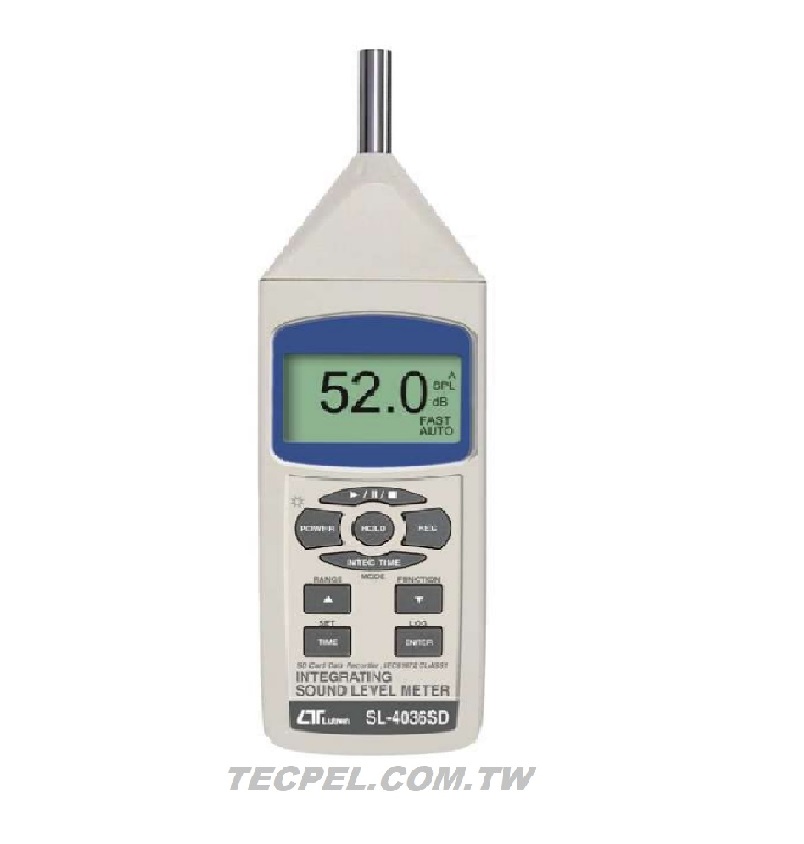

INTEGRATING SOUND LEVEL METER SL-4036SD Real-Time Data Recorder

SL-4036SD

INTEGRATING SOUND LEVEL METER SL-4036SD Real-Time Data Recorder

INTEGRATING SOUND LEVEL METER SL-4036SD Real-Time Data Recorder

INTEGRATING SOUND LEVEL METER SL-4036SD Real-Time Data Recorder

Integrating Sound Level Meter – Class 1

The SL-4036SD integrates real-time data recording capabilities and supports both automatic and manual range selection, ideal for precise noise measurements in industrial monitoring and quality control applications.

More information....

Document

Product Introduction

SL-4036SD sound meter offers high precision measurement capabilities with its advanced microcomputer circuit technology, providing industrial-scale solutions for precise noise monitoring. 🌟 Key Features Real-time recorder: Saves data directly onto SD card (1–16 GB), readable in Excel without extra software. Measurement range: Auto range: 30–130 dB Manual ranges: 30–80 dB, 80–130 dB Measurement modes: SPL, Leq with over/under-range indication. Frequency range: 31.5 Hz to 16 kHz. Weightings: A / C frequency weighting. Time weighting: Fast (125 ms) / Slow (1 s). Display: Dot-matrix LCD with backlight. Outputs: RS232 / USB interface; AC output (0.5 Vrms, 600 Ω). Calibration: External calibration VR, compatible with SC-942 or B&K 4226. Power: 6 × UM3/AA batteries (1.5V) or DC 9V adapter. Software: Optional acquisition software SW-U801-WIN, SW-E802. Patented microcomputer circuit with high accuracy.

Measurement Specification

Measurement Range : Auto range: 30–130 dB; Manual ranges: 30–80 dB, 80–130 dB
Frequency Range : 31.5 Hz to 16 kHz
Resolution : 0.1 dB
Memory : SD card (1–16 GB)
Display : 51 × 30 mm LCD, green backlight
Accuracy : 23 ±5 °C, 94 dB input: 31.5 Hz: ±1.5 dB; 63–500 Hz: ±1.0 dB; 1 kHz: ±0.7 dB; 2–4 kHz: ±1.0 dB; 8 kHz: +1.5/–2.5 dB; 12.5 kHz: +2.0/–5.0 dB; 16 kHz: +2.5/–16.0 dB

Product Features

Real-Time Recording : Saves data directly onto SD card
Over/Under Range Indication : Yes
Frequency Weighting : A / C frequency weighting
Time Weighting : Fast (125 ms) / Slow (1 s)
Interface Outputs : RS232 / USB; AC output (0.5 Vrms, 600 Ω)

Product Information

Weight : 323 g (0.71 lb)
Dimensions : 245 × 68 × 45 mm (9.6 × 2.7 × 1.8 in)
Operating Conditions : Temp: 0–50 °C, Humidity: <85% RH
Power : 6 × UM3/AA batteries (1.5V) or DC 9V adapter
Accessories : Hard carrying case, Instruction manual, Optional USB / RS232 cables
