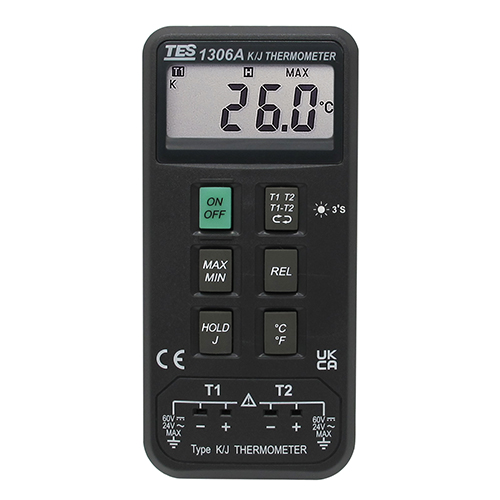

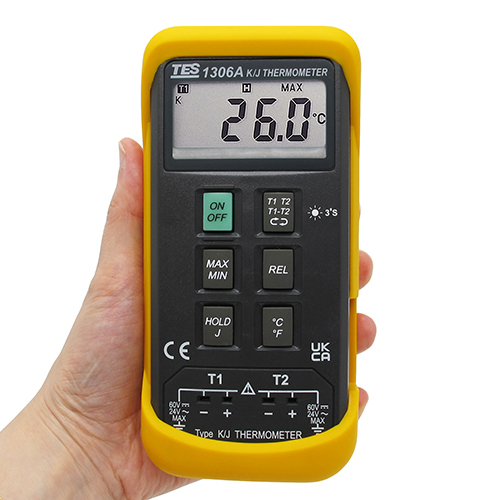

TES-1306A Digital Thermometer with K/J Thermocouple Input

Product Introduction

Measurement Specification

• Sensor Type : K/J type thermocouple
• Temperature : -200℃ ~ 1370℃ / -328℉ ~ 2498℉
• Resolution : 0.1°C / 0.2℉
• Input Protection : 60VDC / 24Vrms
• Battery Life : Approx. 70 hours
• Sensor Type : Piezoelectric Sensor
• Measurement Type : Dual & Differential Input
• Units : mbar, psi, Kg/cm^2, mm/Hg, inch/Hg, meter/H2O, inch/H2O, Atmosphere
• Resolution : 1 mbar (mbar), 0.01 psi (psi)

Product Features

• Auto Ranging : yes
• Data Hold Function : yes
• Max/Min Value Recording : yes
• Multi-Channel Selection : T1→T2→T1-T2
• Backlight : yes
• Record Function : Max/Min Value Record
• Display Feature : Large LCD Display with Contrast Adjustment
• Data Transfer : RS232 PC Interface
• Auto Shut Off : Energy Saving Design

Product Information

• Dimensions : 135(L) × 72(W) × 31(H) mm
• Weight : Approx. 235g
• Power Supply : One 9V battery
• Operating Temperature/Humidity : 0℃ to 40℃ / 32℉ to 104℉, < 80%RH
• Storage Temperature/Humidity : -10℃ to 60℃ / 14℉ to 140℉, < 70%RH

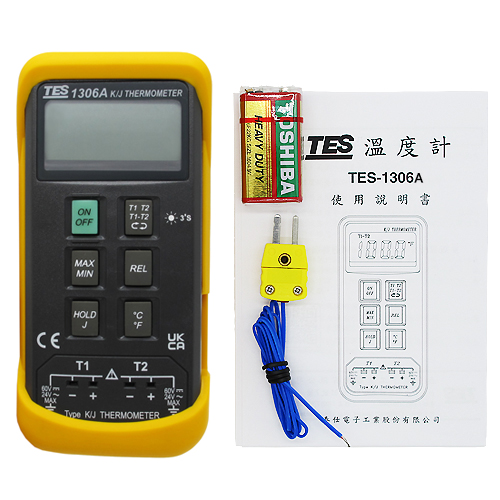

• Accessories : Manual, Battery
• Dimensions : 180 x 72 x 32 mm
• Weight : 345 g
• Power : DC 9V Battery
• Accessories : Instruction Manual, Hard Carrying Case
